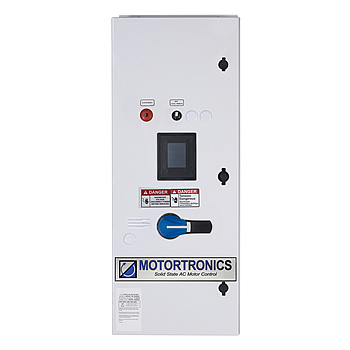

VMX-P Plus Configured Starter

Premium Configured Soft Starter in NEMA 4 / 12 Enclosure

Best in Class VMX-Synergy Plus IEC Soft Starter
With built-in full motor overload protection as well as full data logging, field serviceable fans, upgradeable firmware and extensive input/output programmability, VMX-synergy™ meets all of the key design criteria.

Easy of Use
The display will show all messages in full and 15 different global languages. The use of graphic/schematic
images and active mimic diagrams will facilitate complete understanding. Detailed logging will aid setup
and onboard USB allows configurations to be upload/downloaded and emailed.

Auto Configuration
The automatic functionality has been expanded so that more features can be configured without referring
to parameter lists.

Energy Savings
Energy optimizing is combined with bypass to give energy saving in more applications.

Automatic Load Tuning
The VMX-Synergy™ will ‘tune’ itself to the load.

Touch Screen
The VMX-synergy™ comes standard with a color touch screen on all sizes.

AC Supply Voltage: 208 - 480 Vac

Soft Starter: VMX-Synergy Plus (IEC)

HP Ratings: 5 to 400 HP

Rating: IEC Class 20

Amp Ratings: 18 to 500 Amps

Bypass: Integrated

Enclosure: NEMA 4/12

Circuit Breaker: 50A and up

Disconnect: 25 - 48A

Call us for pricing and availability.

Command Center
The Command Center Interface allows for basic Functionality and Diagnostics.

Command Center Functionality

Illuminated E-STOP Pushbutton
Start/Stop Pushbutton and
Local/Off/Remote Selector
Fault Light / Reset Pushbutton

    Power Components
    6 SCRs in inverse parallel pairs for full phase angle soft start control

    Line Voltage Range
    200 to 600 VAC, 3 phase +10% -15% on all units,
    50/60Hz

    Current Ratings
    17 - 500A depending on unit selection

    Control Voltage
    User supplied 24VDC, 110/230VAC +10% -15% tolerance, 60Hz

    Bypass
    Internal relay bypass for the SCR

    Enclosure
    IP00 (IP 30 optional on VMX-SGY-I-17 to VMX-SGY-I-195)

    Overload
    Full motor overload with Memory
    Programmable Trip Class 10, 20 or 30.
    Trip Class 10 Ie: AC-53a: 350% 17s, 5 starts/hour 90% duty
    Trip Class 20 Ie: AC-53a: 400% 19s, 5 starts/hour 90% duty
    Trip Class 30 Ie: AC-53a: 400% 29s, 5 starts/hour 90% duty

    Short-Circuit Rating
    65kA with breaker (VMX-SGY-I-48 and above)

    Energy Savings
    ERS - intelligent Energy Recovery System as standard

    Input/Outputs
    - 4 x programmable digital inputs
    - 5 x programmable output relays
    - Analog input and output
    - USB for data logging and parameter setting/saving
    - Thermistor

    Setup
    Full Automatic Setup

    Data Logging
    Life Time Application Event Logging Diagnostics
    Comprehensive data logging

    Touch Screen
    3.5” Full Color Touch Screen

    Languages
    Select from 15 Languages

    Communication
    Modbus RTU Standard
    Options available for:
    - Modbus TCP
    - Profibus DP
    - Ethernet/IP
