Full Featured - Compact Soft Starter
VMX-agility™ has been developed to exceed the exacting demands of industrial automation motor control clients. agility™ delivers stable start and stop ramps for smooth, efficient performance. One standard frame size covers all typical applications from 3–350 HP at 200-600 VAC.
Motor Overload Protection
Protecting the motor and soft starter in the event of an overload condition at full I²t motor overload with intelligent thermal memory retention feature. Continually monitoring overloads to ascertain the reduction in motor heating levels even when VMX-agility™ is in the ‘off’ state. This is combined with protection and diagnostics giving the operator peace of mind while running the motor.
Event Logging
VMX-agility™ life event logging is a unique feature that records the last 1600 events to enable fast accurate fault analysis and their resolution. Recording multiple activities including start, stop, top of ramp, faults, application parameters (time, overload level, currents, frequency) and the device information. Event log can be downloaded via USB port or via the VMX-agility commisioning software.
Soft Stopping
Eliminate Water Hammer with Soft Stop Control. A gradual reduction in the output torque of your pump motor is provided when a stop signal is initiated. Check valves close gently and other fluid system components are no longer subjected to the shock and destructive potential of water hammer.

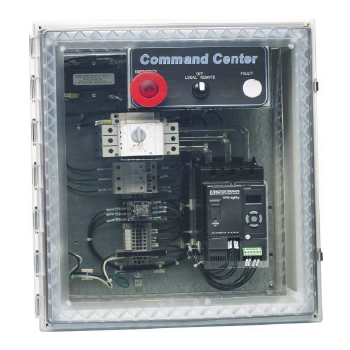

AC Supply Voltage: 208 - 600 Vac
HP Ratings: 7.5 to 350 HP
Amp Ratings: 27 to 414 Amps
Bypass: Integrated
Enclosure: NEMA 4/12
Circuit Breaker: 77A and up
Disconnect: 27 - 65A

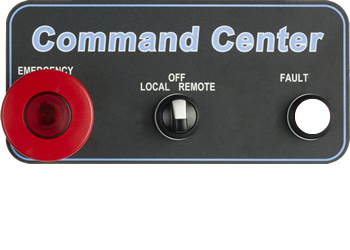

Command Center
The Command Center Interface allows for basic Functionality and Diagnostics.
Command Center Functionality
Illuminated E-STOP Pushbutton
Line Voltage Range Current Ratings Control Voltage Bypass Overload Enclosure |
3S technology Input/Outputs Setup Data Logging Display Languages Communication |
