VMX-H-Plus Configured Starter

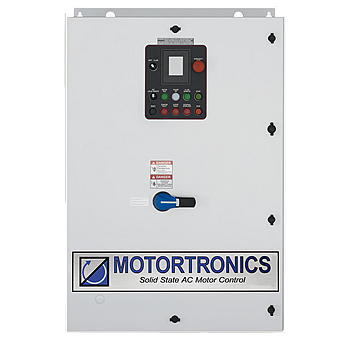

Configured Soft Starter in NEMA 4 / 12 Enclosure

Flexibility of Control
Multiple ramp profiles, Pump-Flex Decel and advanced motor protection make the VMX Series soft starter adaptable to a wide variety of AC motor applications... no need for add-on modules or costly auxiliary devices.

Compact packaging has become critical in more and more electrical installations. The VMX Series meets this need without compromising features and ratings. By using a highly engineered packaging design and the latest generation microprocessor, all the control and protection features you need are in the VMX Series. Narrow and shallow dimensions are perfect for integrating the VMX Series into motor control centers (MCCs), pump control panels, and retrofit starter enclosures.

Integral Bypass Contactors are standard on all sizes and provide maximum efficiency of panel space while maintaining the Motortronics reputation for being able to soft start most any load. The VMX Series is the only fully integrated, compact, world-class design offering uncompromised power and control capabilities.

AC Supply Voltage: 208 - 575 Vac

Soft Starter: VMX-Synergy Plus (ANSI)

HP Ratings: 3 to 1000 HP

Amp Ratings: 18 to 1080 Amps

Overload: 500% for 60 sec.

Starting Method: Adjustable 6 SCR based voltage/current ramping with Full Size SCR Bypass and switch for Full Voltage D.O.L. start with overload.

Enclosure: NEMA 4/12

Breaker: 65 KA Rated

Call us for pricing and availability.

Smart Door
The Smart Door Customer Interface Panel allows for Superior Functionality and Diagnostics.

Smart Door Functionality Door Mounted Touchscreen Keypad
Emergency Stop Pushbutton
Start /Stop Pushbuttons
Reset pushbutton
Power On Pilot Light
External Interlock Pilot Light
X-Line Enabled Pilot Light

    Power Components
    6 SCRs in inverse parallel pairs for full phase angle soft start control

    Line Voltage Range
    200 to 690 VAC, 3 phase +10% -15% on all units,
    50/60Hz

    Current Ratings
    9 - 1250A depending on unit selection

    Control Voltage
    User supplied 110/230VAC +10% -15% tolerance, 60Hz
    Optional 24VDC

    Bypass
    Standard on all units

    Enclosure
    Open Chassis / Panel Mount

    Overload
    Full motor overload with Memory
    Programmable Trip Class 10, 20 or 30.
    Overload Capacity 500% for 60sec.

    Short-Circuit Rating
    65kA with breaker (VMX-SGY-A-62 and above)

    Energy Savings
    ERS - intelligent Energy Recovery System as standard

    Input/Outputs
    - 4 x programmable digital inputs
    - 5 x programmable output relays
    - Analog input and output
    - USB for data logging and parameter setting/saving
    - Thermistor

    Setup
    Full Automatic Setup

    Data Logging
    Life Time Application Event Logging Diagnostics
    Comprehensive data logging

    Touch Screen
    3.5” Full Color Touch Screen

    Languages
    Select from 15 Languages

    Communication
    Modbus RTU Standard
    Options available for:
    - Modbus TCP
    - Profibus DP
    - Ethernet/IP
